Piyo TechJal

Gravity-powered, electricity-free purifier using CSIR-developed Hollow Fibre Membrane for safe drinking water in rural and disaster-hit areas.

Gravity-powered, electricity-free purifier using CSIR-developed Hollow Fibre Membrane for safe drinking water in rural and disaster-hit areas.

Plug & play unit, easier than a hand pump.

No Electricity needed,

eco-friendly design.

Plug & play unit, easier than a hand pump.

No Electricity needed,

eco-friendly design.

Piyo TechJal

Gravity-powered, electricity-free purifier using CSIR-developed Hollow Fibre Membrane for safe drinking water in rural and disaster-hit areas.

Plug & play unit, easier than a hand pump.

No Electricity needed, eco-friendly design.

Plug & play unit, easier than a hand pump.

No Electricity needed,

eco-friendly design.

Available Variants

Available Variants

Available Variants

Piyo Tech Jal 100

Up to 500 L/hr capacity

Ideal for Schools, villages, and temporary camps.

Piyo Tech Jal 100

Up to 500 L/hr capacity

Ideal for Schools, villages, and temporary camps.

Piyo Tech Jal 100

Up to 500 L/hr capacity

Ideal for Schools, villages, and temporary camps.

Piyo Tech Jal 200

Up to 1000 L/hr capacity

Ideal for Medium-sized villages, panchayats, NGOs.

Piyo Tech Jal 200

Up to 1000 L/hr capacity

Ideal for Medium-sized villages, panchayats, NGOs.

Piyo Tech Jal 200

Up to 1000 L/hr capacity

Ideal for Medium-sized villages, panchayats, NGOs.

Piyo Tech Jal 500

Up to 2000 L/hr capacity

Ideal for Large villages, army camps, or institutions

Piyo Tech Jal 500

Up to 2000 L/hr capacity

Ideal for Large villages, army camps, or institutions

Piyo Tech Jal 500

Up to 2000 L/hr capacity

Ideal for Large villages, army camps, or institutions

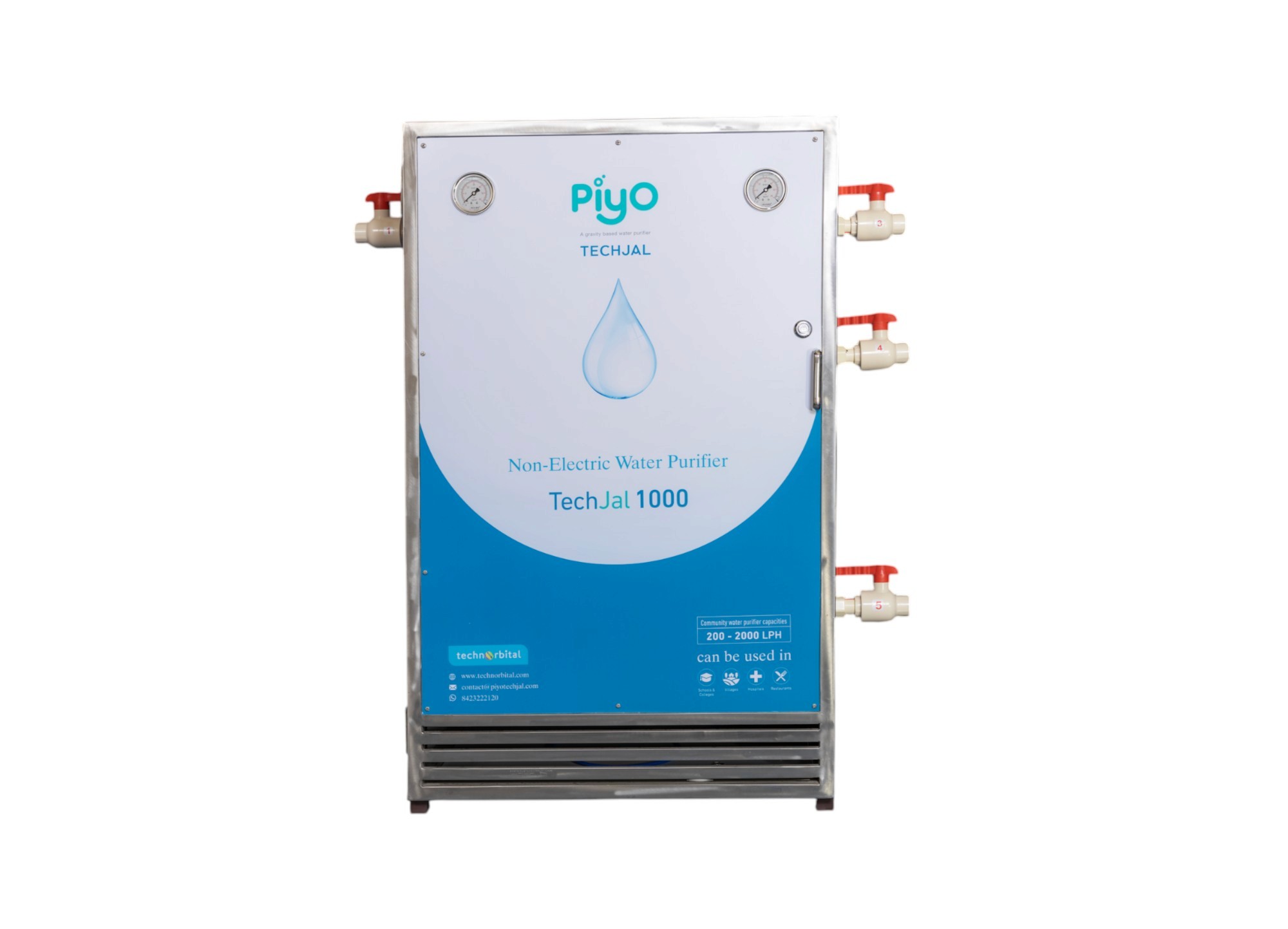

Piyo Tech Jal 1000

Up to 1000 L/hr capacity

Ideal for Medium-sized villages, panchayats, NGOs.

Piyo Tech Jal 1000

Up to 1000 L/hr capacity

Ideal for Medium-sized villages, panchayats, NGOs.

Piyo Tech Jal 1000

Up to 1000 L/hr capacity

Ideal for Medium-sized villages, panchayats, NGOs.

Piyo Tech Jal 2000

Up to 1000 L/hr capacity

Ideal for Medium-sized villages, panchayats, NGOs.

Piyo Tech Jal 2000

Up to 1000 L/hr capacity

Ideal for Medium-sized villages, panchayats, NGOs.

Piyo Tech Jal 2000

Up to 1000 L/hr capacity

Ideal for Medium-sized villages, panchayats, NGOs.

Multi-Stage Filtration. No Power Needed.

Multi-Stage Filtration.
No Power Needed.

Multi-Stage Filtration.
No Power Needed.

Piyo Tech Jal is an electricity-free water purifier by technorbital that removes 99.9% of bacteria and viruses. Available in 100–2000 LPH capacities, it’s ideal for schools, hotels, and public spaces. Its advanced UF hollow fiber membrane, crafted using our in-house developed Polynorbit polymer, ensures high efficiency, durability, and consistent water purity.

features

features

features

Advanced Membrane Tech

Powered by polymeric membranes from CSIR-Pune and Technorbital, ensuring unmatched filtration.

Triple-Layer Pre-Filtration

Includes polypropylene and carbon pre-filters to remove turbidity, chlorine, and foul smell.

Virus & Bacteria Removal

Hollow fiber membranes eliminate waterborne pathogens like Jaundice, Polio, and Cholera without chemicals.

Electricity-Free Operation

TechJal runs without power, perfect for rural or off-grid areas needing reliable water solutions.

High Output Capacity

Delivers between 500 to 2000 L/hr of clean drinking water suitable for community-level water needs.

Low Maintenance & Long Life

Easy to clean and maintain, with membranes that last up to 2–3 years depending on water quality, usage.

Zero Water Wastage

Unlike RO systems, TechJal ensures 100% water utilization while preserving essential life minerals.

Mobile & Eco-Friendly Versions

Portable formats for relief camps and emergencies, supporting eco-conscious and flexible deployment.

Specifications

Specifications

Specifications

Membrane Material

Membrane Material

Hollow fiber membrane for superior filtration. Available in various flow rates (100/200/500/ 1000/2000 LPH).

 Long lifespan (2-3 years).

Hollow fiber membrane for superior filtration. Available in various flow rates (100/200/500/ 1000/2000 LPH).

 Long lifespan (2-3 years).

Manual Backwashing Pump

Manual Backwashing Pump

Ensures easy cleaning

Ensures easy cleaning

Pre-Filters

Pre-Filters

5 micron PP filter removes sediment. (Replace every 3-4 months). Activated Carbon filter eliminates odor, taste, & chlorine. (Replace every 3-4 months)

5 micron PP filter removes sediment. (Replace every 3-4 months). Activated Carbon filter eliminates odor, taste, & chlorine. (Replace every 3-4 months)

Durable Construction

Durable Construction

Stainless steel and aluminum composite housing for long-lasting performance.

Stainless steel and aluminum composite housing for long-lasting performance.

More Specifications

More Specifications

More Specifications

Piyo Tech Jal 100

Water Output

Water Output

100 L/hour

100 L/hour

Operating Temperature

Operating Temperature

10°C – 40°C

10°C – 40°C

Turbidity Removal

Turbidity Removal

Up to 5 NTU to <1 NTU

Up to 5 NTU to <1 NTU

Filter Type

Filter Type

Polypropylene + Activated Carbon + UF

Polypropylene + Activated Carbon + UF

Dimensions

Dimensions

330mm (L) × 230mm (W) × 500mm (H)

330mm (L) × 230mm (W) × 500mm (H)

Dry Weight

Dry Weight

Approx. 8 kg (varies by variant)

Approx. 8 kg (varies by variant)

Piyo Tech Jal 200

Water Output

Water Output

200 L/hour

200 L/hour

Operating Temperature

Operating Temperature

10°C – 40°C

10°C – 40°C

Turbidity Removal

Turbidity Removal

Up to 5 NTU to <1 NTU

Up to 5 NTU to <1 NTU

Filter Type

Filter Type

Polypropylene + Activated Carbon + UF

Polypropylene + Activated Carbon + UF

Dimensions

Dimensions

460mm (L) × 320mm (W) × 810mm (H)

460mm (L) × 320mm (W) × 810mm (H)

Dry Weight

Dry Weight

Approx. 21 kg (varies by variant)

Approx. 21 kg (varies by variant)

Piyo Tech Jal 500

Water Output

Water Output

500 L/hour

500 L/hour

Operating Temperature

Operating Temperature

10°C – 40°C

10°C – 40°C

Turbidity Removal

Turbidity Removal

Up to 5 NTU to <1 NTU

Up to 5 NTU to <1 NTU

Filter Type

Filter Type

Polypropylene + Activated Carbon + UF

Polypropylene + Activated Carbon + UF

Dimensions

Dimensions

650mm (L) × 490mm (W) × 1040mm (H)

650mm (L) × 490mm (W) × 1040mm (H)

Dry Weight

Dry Weight

Approx. 45 kg (varies by variant)

Approx. 45 kg (varies by variant)

Piyo Tech Jal 1000

Water Output

Water Output

1000 L/hour

1000 L/hour

Operating Temperature

Operating Temperature

10°C – 40°C

10°C – 40°C

Turbidity Removal

Turbidity Removal

Up to 5 NTU to <1 NTU

Up to 5 NTU to <1 NTU

Filter Type

Filter Type

Polypropylene + Activated Carbon + UF

Polypropylene + Activated Carbon + UF

Dimensions

Dimensions

700mm (L) × 540mm (W) × 1150mm (H)

700mm (L) × 540mm (W) × 1150mm (H)

Dry Weight

Dry Weight

Approx. 52 kg (varies by variant)

Approx. 52 kg (varies by variant)

Piyo Tech Jal 2000

Water Output

Water Output

2000 L/hour

2000 L/hour

Operating Temperature

Operating Temperature

10°C – 40°C

10°C – 40°C

Turbidity Removal

Turbidity Removal

Up to 5 NTU to <1 NTU

Up to 5 NTU to <1 NTU

Filter Type

Filter Type

Polypropylene + Activated Carbon + UF

Polypropylene + Activated Carbon + UF

Dimensions

Dimensions

700mm (L) × 540mm (W) × 1530mm (H)

700mm (L) × 540mm (W) × 1530mm (H)

Dry Weight

Dry Weight

Approx. 60 kg (varies by variant)

Approx. 60 kg (varies by variant)

How it Works

How it Works

How it Works

01

01

Polypropylene Pre-Filter

Removes visible dust, dirt, and turbidity.

02

02

Activated Carbon Pre-Filter

Eliminates foul odour, taste, chlorine, pesticides & VOCs.

03

03

Hollow Fibre UF Membrane

Removes viruses, bacteria, and disease-causing pathogens

04

04

Pure Water Outflow

Clear, mineral-rich water without any wastage.

case studies

case studies

case studies

Real Impact.
Proven Performance.

  • Rural Water Safety in Maharashtra: 93% Drop in Illnesses, 30K Litres Purified with TechJal During Relief Ops

    TechJal is a game-changer for clean drinking water access in areas with poor infrastructure. From Maharashtra's remote villages to disaster-hit Andhra and Jammu & Kashmir, TechJal shows resilience and life-saving capability.

  • Disaster Relief Deployment: 50K+ Litres Purified, 10K+ Lives Reached with TechJal in Andhra & J&K Flood Zones.

    Severe cyclones in Andhra and floods in Jammu & Kashmir made access to clean water critical. TechJal mobile filtration units, in collaboration with the Indian Army, provided safe drinking water. Purifying 500–2000 litres per hour, they supported relief efforts, ensuring over 10,000 people had access to safe water.

  • Rural Water Safety in Maharashtra: 93% Drop in Illnesses, 30K Litres Purified with TechJal During Relief Ops

    TechJal is a game-changer for clean drinking water access in areas with poor infrastructure. From Maharashtra's remote villages to disaster-hit Andhra and Jammu & Kashmir, TechJal shows resilience and life-saving capability.

  • Disaster Relief Deployment: 50K+ Litres Purified, 10K+ Lives Reached with TechJal in Andhra & J&K Flood Zones.

    Severe cyclones in Andhra and floods in Jammu & Kashmir made access to clean water critical. TechJal mobile filtration units, in collaboration with the Indian Army, provided safe drinking water. Purifying 500–2000 litres per hour, they supported relief efforts, ensuring over 10,000 people had access to safe water.
